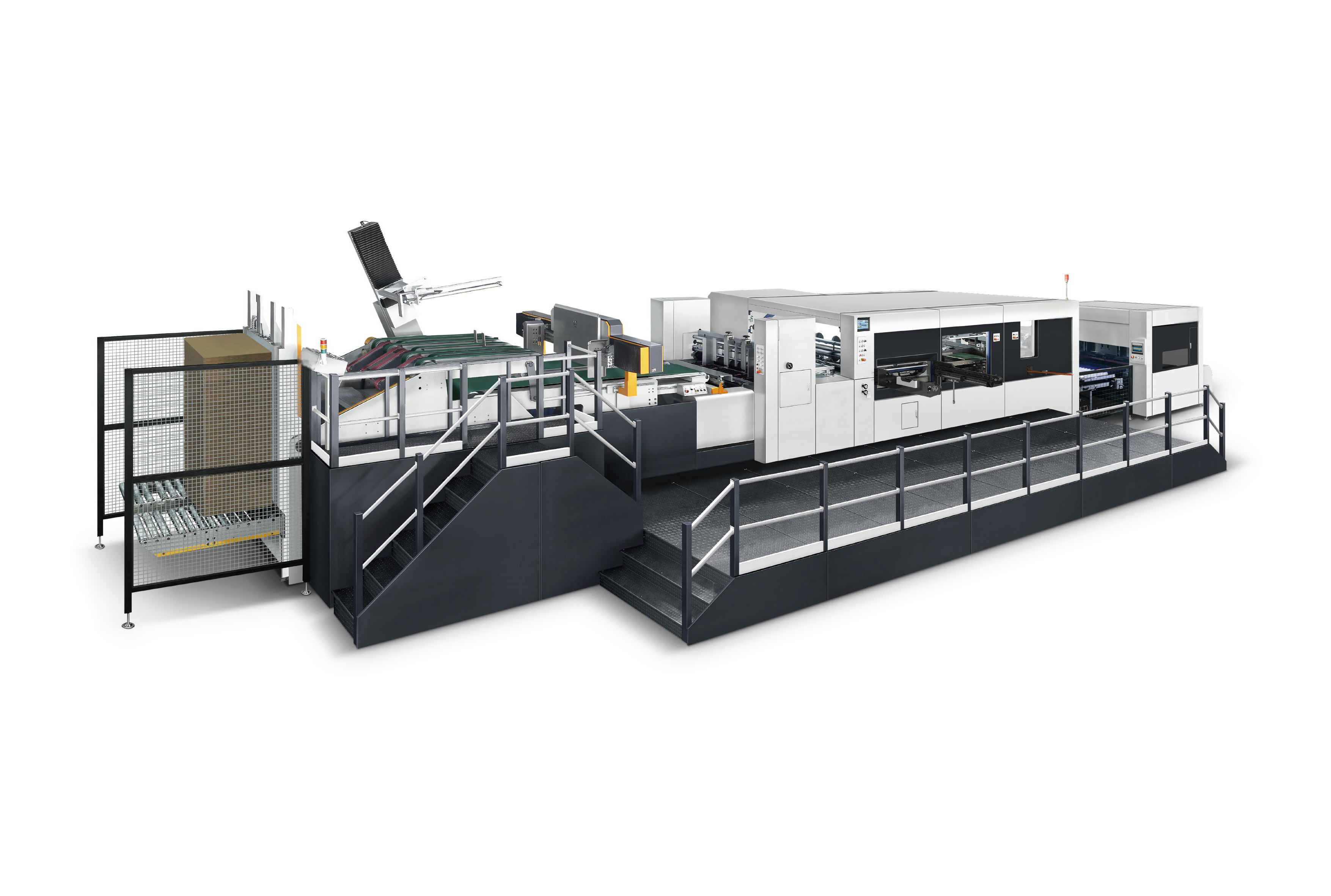

480×480mm Automatic Flatbed Die Cutting Machine PLC Control Customizable

Brand Name : FINTEECH

Model Number : FM-HK 1300FC/1500FC

Certification : CE

Place of Origin : CHINA

MOQ : 1set

Packaging Details : wooden case

Delivery Time : 20-30 days

Payment Terms : TT/LC

Supply Ability : 10 sets per day

Max Cutting Pressure : 300 tons

Min Sheet Size : 400mm x 300mm

Suitable For : Corrugated Boxes, Cartons, Trays, etc.

Die Cutting Method : Rotary Die Cutting

Keyword : printer slitter die cutter machine

Max Speed : 200 sheets per minute

Voltage : 380V

Power : 4.0kw

Power Consumption : 15 kW

Type : Semi-Automatic

Computerized : No

Power Supply : 380V, 50Hz, 3-phase

Contact Now

Corrugated Box Die Cutting Machine
Features Introduced
Our converting system integration combines multiple devices in line to minimize manual work while optimizing and accelerating product flow within a single process. This system represents the most popular and practical production mode in the global market, offering superior stability.
Key components include:
  • Automatic prefeeder linked with the diecutter feeder to maximize feeding efficiency and reduce operator workload
  • Integrated automatic breaker that separates blanks from multiple ups, significantly reducing labor costs compared to manual operations
  • Fully customizable system that adapts to specific client requirements, product techniques, and processes
Technical Parameters
Paper Feeder Specifications
Model FM-HK1500FC FM-HK1300FC
Sheet size Max. 1500*1100mm
Min. 550*450mm		 Max. 1300*940mm
Min. 550*450mm
Corrugated board thickness Max. 8.5mm, Min. 1mm Max. 8.5mm, Min. 1mm
Batch height Max. 1800mm Max. 1800mm
Pile weight 1200kg 1200kg
Machine weight 3800kg 3600kg
Die Cutting Machine Specifications
Model FM-HK1500FC FM-HK1300FC
Max. sheet size 1500*1100mm 1290*940mm
Min. sheet size 480*480mm 480*480mm
Max. die cutting size 1480*1080mm 1280*920mm
Inner chase size 1520*1130mm 1310*970mm
Stock range E, B, C, A and AB flute corrugated paper (1-8.5mm thickness) E, B, C, A and AB flute corrugated paper (1-8.5mm thickness)
Min. gripper waste 12mm 12mm
Min. gripper margin 6-12mm 6-12mm
Cutting rule height 23.8mm 23.8mm
Max. die cutting speed 6000s/h 6000s/h
Max. die cutting pressure 400ton 400ton
Total power required 32kw 27kw
Electrical power 380V, 50HZ, 3PH 380V, 50HZ, 3PH
Mobile lower platen adjusting range ±1.5mm ±1.5mm
Machine dimension 11800*5000*2400mm 10630*4820*2400mm
Machine weight 25T 22T
Sharding Machine Specifications
Model FM-HK1500FC FM-HK1300FC
Sheet size Max. 1500mm, Min. 550mm Max. 1300mm, Min. 550mm
Min. batch dimension in machine direction 200mm 200mm
Max. batch thickness 300mm 300mm
Min. batch thickness 20mm 20mm
Batch passage height from the floor 900mm (adjustable) 900mm (adjustable)
Full PLC control Standard feature on all models
